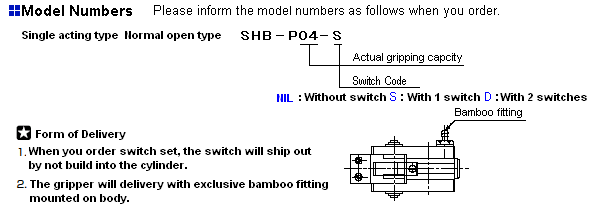

Specifications Please click the code number for details. Structure Parallel Open-Closed with Short Body Type Code SHB-P04 SHB-P08 Actual gripping capacity 19.6N 30.4N Open,close,stroke mm 4mm 8mm Working fluid Air Lubrication Unnecessary(But possible) Operating pressure range 0.3∼0.5MPa Proof test pressure 0.7MPa Max.operating frequency 40C.P.M. Temperature range -10∼+60Celsius degree(Do not use when frozen) Repeatability ±0.05mm(Initial value at tip of finger) Lubricant JIS K2213-1(Additive turbine oil ISO VG32) of equivalent Weight 52g 102g * Acutual gripping capacit * Weignt available for holding,conveyance with actual gripper is about 10%of the theoretical gripping,opening capacity.

Switch Specifications Please click the code number for details.

Code CS101-A(With cord1.5m) Detection style High frequency oscillation type Power supply DC12∼24V±10%(Ripple P-P10% and less) Voltage·current DC24V MAX .100mA Current consumption DC24V MAX . 15mA Voltage drop DC24V MAX . 1V Insulation resistance DC500V Mega MIN 500MΩ(Case∼cable) Voltage-proof AC1000V No trouble for 1 min.(Case∼cable) Shock-proof 490m/s2 Vibration-proof Double vibration width 1.5mm 10∼55Hz 2hours Temperature -10-∼+60Celsius degree) Wiring style 0.12mm2 3 Cores Outer dia. 2.9 Cabtyre cord Protective structure IP67(IJapan Electrical Manufacturers` Association grade) or equivalent Indicating lamp LED(Lights with switch ON) Electric circuit Applied Miniature relay·Small relay·sequencer weight(gf) 23g
