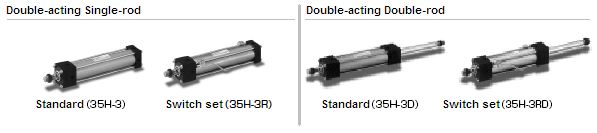

3.5 MPa hydraulic cylinder

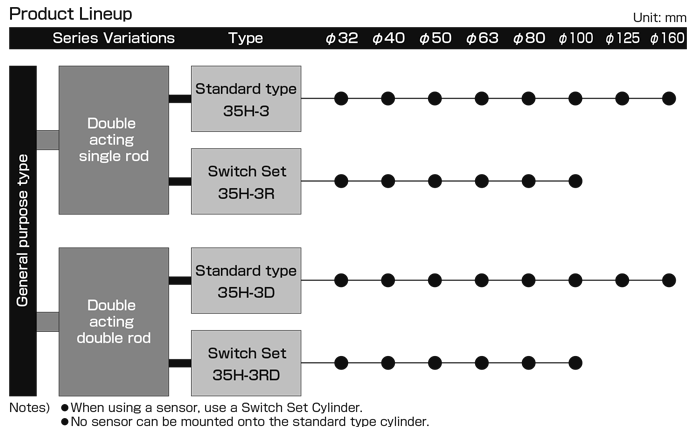

- Switch Set Cylinders with bores from 32 mm to 100 mm are standardized.
- For magnetic proximity sensor, the selection of small, reed sensor or solid state sensor type is available. The solid state sensor, 2-wire 2-LED type, facilitates setting at the optimum position (green lighting). WR and WS type sensors are also mountable (semi-standard).
- U-seal is used as the standard piston seal.
- For cushion structure, the metal fitting system is adopted.
