New style compact hydraulic cylinders for 16 MPa with absolute position sensor.
- Provided with a small position sensor not affecting the compact design of the cylinder.
- Same dimensions as those of 160S-1 except the sensor on the cap side.
- Usable in a strong magnetic field where magnetic proximity sensors cannot be used.
- Applicable to cylinder with bores of 32 to 125 mm and strokes of 5 to 50 mm. (For strokes more than 60 mm, consult us.)
- The standard cylinders have male threaded rod ends.

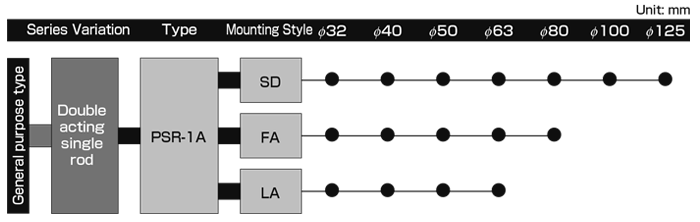

- Mounting style: SD, FA and LA (foot type).
