35RP2 Series

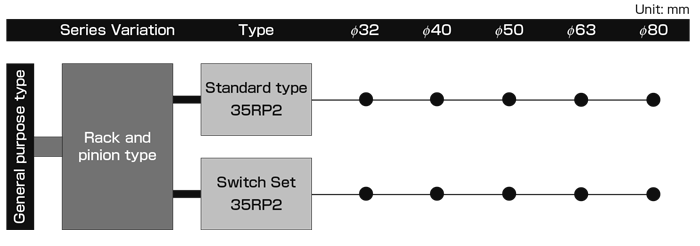

- The rotary actuators come in five cylinder bores from 32 to 80 mm and three mounting styles, SD, FA and FB.
- The unique backlash eliminating mechanism prevents backlash at the rotating ends.
- The rotating angle can be adjusted in the range of ±5° by the rotation angle fine adjustment mechanism.
- Versatile magnetic proximity sensors of AX and AZ types are standardized.
- The external dimensions and mounting dimensions are completely identical with those of 35RP.
- Since the piston contains a magnet, a sensor can be mounted after installation. (The same sensors as those of 35H-3R can be used.)
